Supernova
Reference, Our Style
Introduction
7th Acoustics Supernova is an in-ear monitoring earphones equipped with 6 balanced armature drivers, meticulously hand-picked and engineered to deliver an unparalleled, best-in-class sound quality.
Crafted with utmost precision, the 6 balanced armatures are housed in an ergonomic shell featuring a cutting-edge, high-precision 3D-printed structure. This design ensures a comfortable fit and optimal sound transmission, allowing you to enjoy your music for hours on end without any discomfort or compromise in audio quality, down to selecting and crafting our own cable for the most optimised quality.
Technical Highlight
Fully 3D-printed individual acoustic tube
Sonion and Knowles balanced armature
EXP (Extreme Xover Performance) 3-way crossover
ECHO (Enhanced Clarity Horn Outlet) supertweeter tube
Nozzle acoustic resonator
Spring loaded female 2-pin
Estron silver-plated copper Litz internal wire
Oyaide silver solder tin
Design

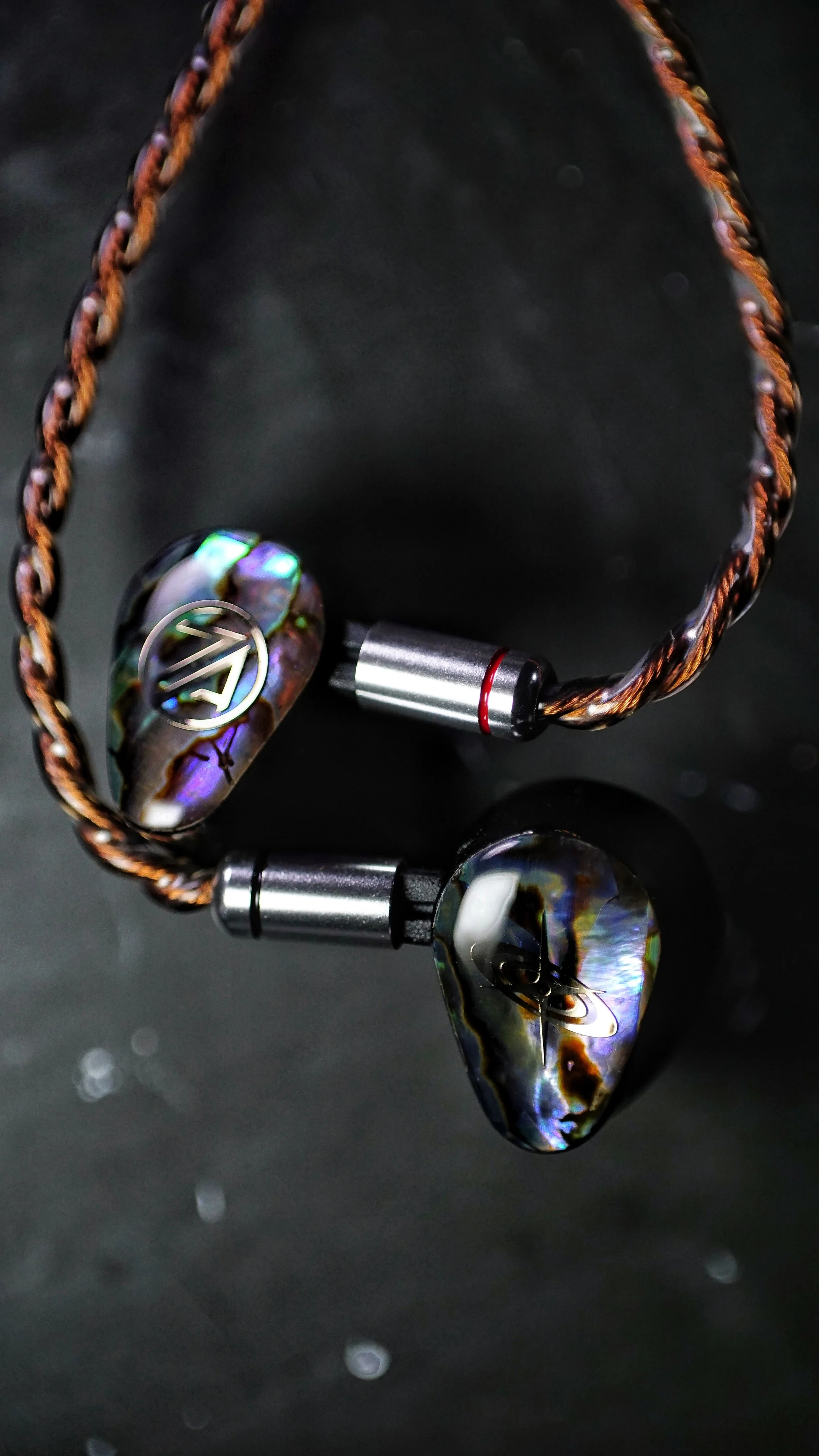

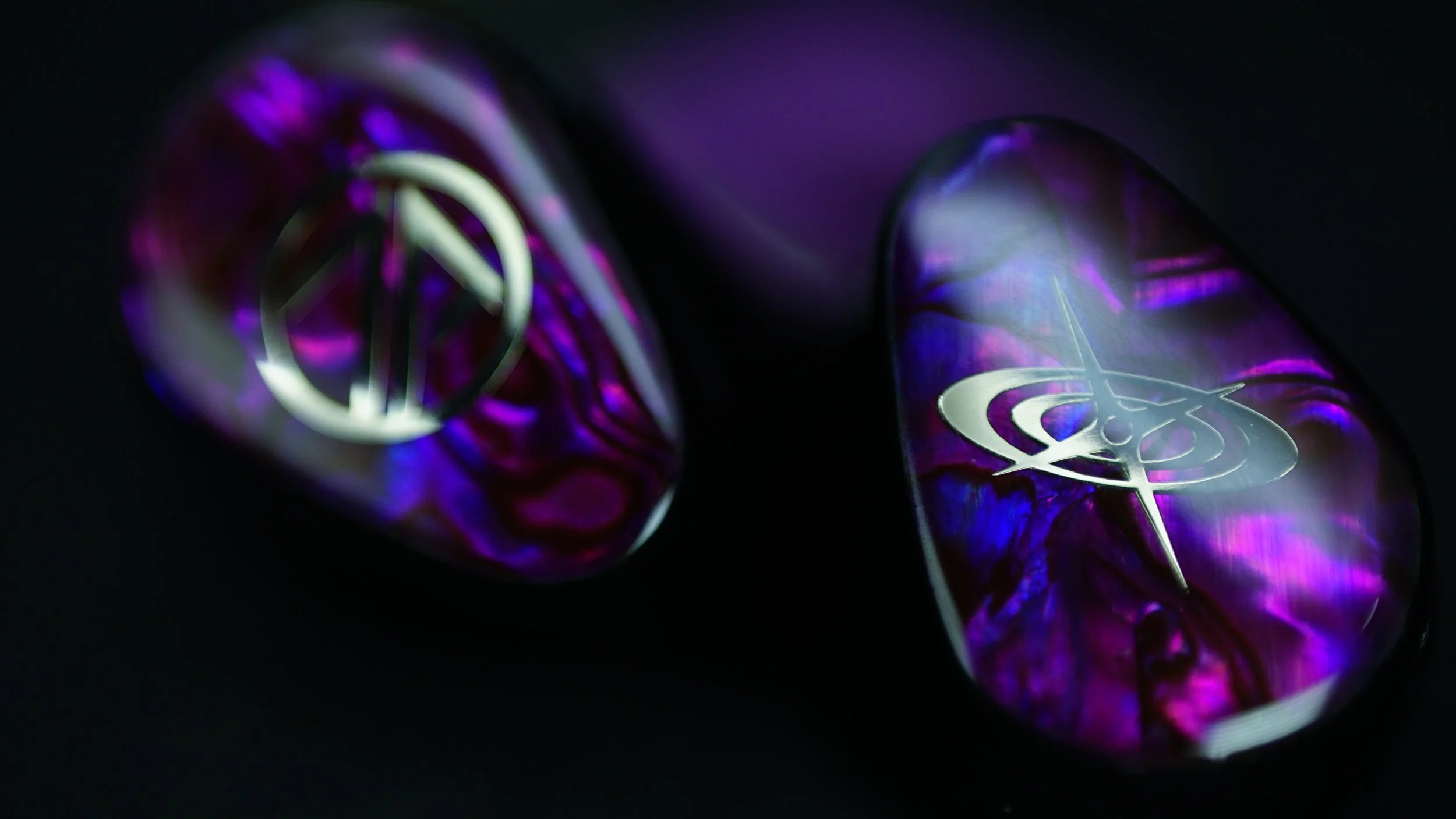

The Supernova sets itself apart from the competition with its captivating aesthetic appeal. Each pair of these in-ear monitoring earphones are meticulously hand-finished with real natural abalone faceplate, making each unit truly unique.
Sound
The sound of Supernova is how we, the 7th Acoustics team, imagine how music should sound like. From the first note, the Supernova offers an excellent and captivating timbre, portraying every musical element with a lifelike definition. The transients are precise and yet pleasant, ensuring that every detail is faithfully reproduced.
From the bass, Supernova presents a deep, tight, and full-textured bass response without unwanted boominess. Music comes to life with incredible depth and natural timbre.
Into the midrange, Supernova shows an incredible versatility in handling all kinds of vocals and instruments. Both male and female vocals shine through as if you are in the same room as the vocalist.
Not to miss the treble, Supernova maintains an excellent treble extension without unwanted dips or peaks, giving a crystal-clear and airy presentation
Technology
ECHO - Enhanced Clarity Horn Outlet
ECHO is 7th Acoustics treble acoustic technology to control and push the supertweeter capabilities to its absolute limit. Unlike a conventional acoustic tube, ECHO mimics horn loudspeakers to enhance the efficiency of the driver, especially in the higher frequency ranges. This allows the treble region to be more crisp and well-extended without sounding unnatural or shrill.
EXP - Extreme Xover Performance
EXP is 7th Acoustics in-house proprietary crossover technology, featuring a true higher-order crossover design to ensure perfect coherency and seamless transition between various drivers in the IEM with minimum cancellation and phase mismatch. Each group of drivers is tuned meticulously to match their phase with the previous and next group of drivers. Utilising the highest quality capacitors and resistors, EXP ensures a very low distortion and high driving efficiency without compromise.
Specification
Driver configuration: 6 balanced armatures
Housing material: medical-grade resin + real abalone faceplate
Impedance: 15Ω @1kHz
Frequency Response: 5-24,000 Hz
Channel Matching: ±1dB
Socket: spring-loaded 2-pin 0.78mm
Cable: bespoke 4-core 25AWG OCC pure Copper terminated in gold plated 4.4mm jack
Included in The Box
Supernova In-ear Monitoring Earphones
IEM Aluminium Alloy Case
Final Audio Type E ear tips (SS, S, M, L, LL)
7th Acoustics standard ear tips (S, M, L)
4.4mm Copper Cable
Warranty Card
Microfiber Cleaning Cloth
Sticker
Limited 1.5 Years Warranty
